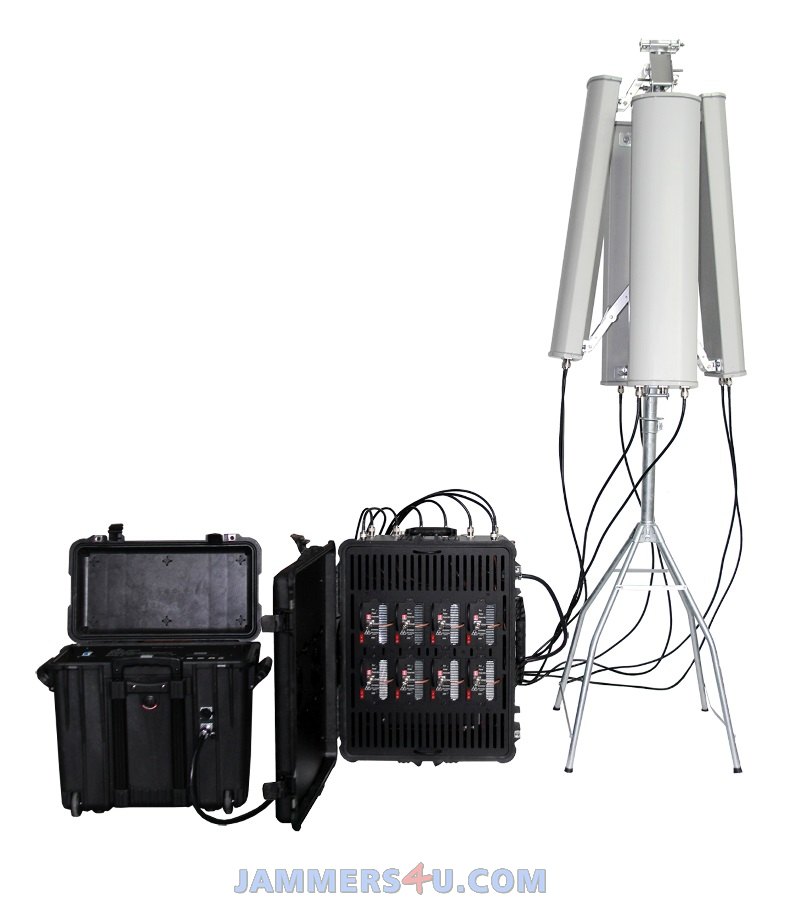

CT-8078-UAV-HGA Anti-Drone UAV Jammer 2.4Ghz GPS 360 Degrees 800W up to 8000m

CT-8078-UAV-HGA Anti-Drone UAV Jammer 2.4Ghz GPS 360 Degrees 800W up to 8000m
Click to enlarge
Price: $14,200.00
Availability: In Stock
Model: CT-8078-UAV-HGA
Manufacturer: Jammers4u
Average Rating: Not Rated

CT-8078-UAV-HGA Anti-Drone UAV Jammer 2.4Ghz GPS 360 Degrees 800W up to 8000m

Anti-Drone UAV 2.4ghz & GPS Jammer
4 Higher Gain Directional Antennas, cover 360 degrees
Wireless RC OFF/ON 220V, Portable Pelican case 1620
Jamming range 3000~8000 Meters

Frequency/antennas specification 8 bands
One Directional Antenna with Two Bands to Cover 90 Degrees
1.  2.4-2.5GHz WiFi 11.g, b, Bluetooth 100W
2.  1570-1620MHz GPS L1 + GLONASS L1 100W
One Directional Antenna with Two Bands to Cover 90 Degrees
3.  2.4-2.5GHz WiFi 11.g, b, Bluetooth 100W
4. 1570-1620MHz GPS L1 + GLONASS L1 100W
One Directional Antenna with Two Bands to Cover 90 Degrees
5.  2.4-2.5GHz WiFi 11.g, b, Bluetooth 100W
6  1570-1620MHz GPS L1 + GLONASS L1 100W
One Directional Antenna with Two Bands to Cover 90 Degrees
7  2.4-2.5GHz WiFi 11.g, b, Bluetooth 100W
8  1570-1620MHz GPS L1 + GLONASS L1 100W
Total : Four Directional Antennas to Cover all 360 Degrees
Total : 800W

Most of commercial professional Drones/UAVs use 2.4GHz and GPS for Remote Control Systems Like Dji Phantom 4, Phantom 3 Professional, Advanced Series, Inspire Series... Jamming Range 3000-8000+ Meters. The jamming distance will be varied depending on the signal strength and location.

Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular
Power supply:    AC adapter (AC 220V-DC 27V or 24V/45 Amp) or External Battery
Jamming Range    Radius 1000-3000+ Meters
Stand-alone modular design and individual power control.
Adjustable Output Power each Band/Channel
VSWR over protection for each modular.
Working status indicator for each band modular.
Pelican 1620 Case Raining Proof
Dimension:626 mm(L)×49.2mm(W)× 350mm(H)
Weight:45 Kg (approximately) just main unit
Operating temperature: -20℃ ~ +60℃
Humidity: 5% ~ 90%
Warranty:    1 year

External Battery in order option:
B-50AH  27V/50AH LiFePo4 Battery USD$1800
Pelican Case 1440, 35kg Weight. Work 1-2 hours



HIGHER GAIN DIRECTIONAL ANTENNA TWO BANDS IN ONE ANTENNA
ELECTRICAL SPECIFICATIONS
Frequency Range-------------------------     1570-1620MHz/2400-2500MHz
Impedance----------------------------------     50 Ohm
VSWR----------------------------------------     ≤1.5
Gain-------------------------------------------     14dBi (1570-1620MHz):16 dBi (2400-2500MHz)
Front to Back Ratio-----------------------     >24dB
Polarization---------------------------------      ±45°
Horizontal 3dB Beam Width------------     (1570-1620):90°  (2400-2500):90°
Vertical 3dB Beam Width---------------     (1570-1620):15°  (2400-2500):15°
Maximum Input Power-------------------     200W
Lighting Protection------------------------     Direct Ground
Connector Place---------------------------     Bottom
Connector-----------------------------------     N-Female
 MECHANICAL SPECIFICATIONS
Dimensions(L/W/D)-------------------------     745*180*80mm
Weight------------------------------------------     4.0 kg
Rated Wind Velocity------------------------     60m/s
Operating Temperature--------------------     -40℃-60℃
Mounting Hardware-------------------------     Ø50-Ø75mm
Radiating Element Material---------------      Zinc  Alloy、Aluminum Alloy
Reflector Material---------------------------      Aluminum Alloy
Radome Material----------------------------      PVC
Radome Color--------------------------------     Gray

1 Year warranty, Taiwan design quality made in Hong Kong

Neutral packing, ODM OEM Manufacturer and exporter :

R&R GROUP INTERNATIONAL
Taipei Taiwan, Hong Kong, Dubai UAE
