Simple weapon against drones Directional 34-40W Anti Drone UAV RC Jammer up to 1200m

CT-4001P / CT-4001PH Anti Drone UAV 34-40W Directional Antenna Jammer up to 1200m

A simple weapon against drones, portable directional handheld drone (UAV) jammer that is designed to be compact for easy carrying and terrain use. It is fully autonomus with built in directional antenna and battery for 80min operation. CT-4001PH is easy to handle in use, since only handheld antennas are directed towards the threat, thus soldier is not under heavy weight of the whole device.

Split design, separate light weight, hand-held antennas make it more ergonomic, precise and practical in use. It is best suited for military special operations teams, police, security forces that are deployed in different situations or public events. Specialized to block 2.4Ghz, GPS, and 5.8Ghz signals that use most of commercial UAV Drones for their remote controls.The effective blocking range is up to 1200+ meters. The jamming distance always varied depending on the signal strength and location. Device does not block the operation of mobile phones.

New HOME Option on drone Jammer CT-4001PH is implementation that greatly improves  functionality and safety of operators as well as potential targets. When drone is spotted and jammed, it will hoover for some time, and proceed to slow landing. That can cause dangerous situation if drone caries explosives, bio weapons or similar. By activating HOME option, drone will get immediate internal command to go back to take-off site and land there. This will give you a visual trace and possible drone operator capture while dangerous load is out off protected area.

Portable Hand Held Anti-Drone Jammer
Max 40W, 4 RF Modules, 3 Bands 2.4Ghz GPS L1 5.8Ghz
80 mins Built-in Battery, Battery LED Status

​1 Ver CT-4001P - 1700.00 US$ (Jamming range 300 to 1000m+):
RC 2.4-2.5GHz 10W  WiFi 11.g, b, Bluetooth (Vertical Polarization)
RC 2.4-2.5GHz 10W  WiFi 11.g, b, Bluetooth ( Vertical Polarization)
GPS L1 + GLONASS L1 10W 1570-1620MHz
RC 5.7GHz-5.9GHz  4W
Total : 34W

2 Ver CT-4001PH - 3100.00US$ (Jamming range 300 to 1200m+, 10W on 5Ghz):
RC 2.4-2.5GHz 10W  WiFi 11.g, b, Bluetooth (Vertical Polarization)
RC 2.4-2.5GHz 10W  WiFi 11.g, b, Bluetooth ( Vertical Polarization)
GPS L1 + GLONASS L1 10W 1570-1620MHz
RC 5.7GHz-5.9GHz  10W
Total : 40W

Jamming range  300~1200 Meters
The jamming distance will be varied depending on the signal strength and location.
Operating Time 80 Minutes, Battery LED Status,
Two 2.4GHz Bands 10W per band cover Most of all Commercial Drones / UAVs
Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...
Adjustable Output Power each Band from Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular
Power supply: AC Charger adapter   (AC220V/110V)
Dimension：260 x 260 x 70 mm (H × W × D)
Weight：2.7 Kg (approximately)
Operating temperature: -20℃ ~ +60℃

Four Bands in One Directional Antenna Specification Electrical Specifications :
Frequency Range  1575-1620MHz  2400-2500MHz  2400-2500MHz  5150-5875MHz
Gain    8dBi    12dBi    12dBi    15dBi
VSWR    ≤1.5    ≤1.5    ≤1.5    ≤1.5
Polarization    Vertical    Vertical    Vertical    Vertical
Horizontal beamwidth    65°    60°    60°    60°
Vertical beamwidth    55°    28°    28°    14°
Front to back ratio    ≥24dB    ≥25dB    ≥25dB    ≥25dB
Input Impedance    50Ω    50Ω    50Ω    50Ω
Max Input Power    50W    50W    50W    50W
Double 2.4GHz 10W block much longer
Good Isolation each other (4 bands in)
Connector     N-M
Lightning protection    Direct Ground
Mechanical  Specifications
Dimensions    255*255*45mm
Weight    1.1kg
Radiator Material    Alumina
Radome Material    Black

Package contents:
1pc Handheld Portable Signal Jammer
1pc AC Charger 110/220V

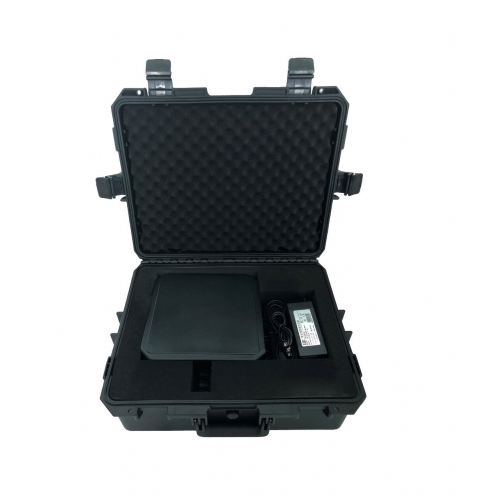

Additional Carry case in order options, size 521 x 421 x 140 mm, 2.9Kg (only Case)

2 Years warranty, Neutral packing, OEM Manufacturer :
